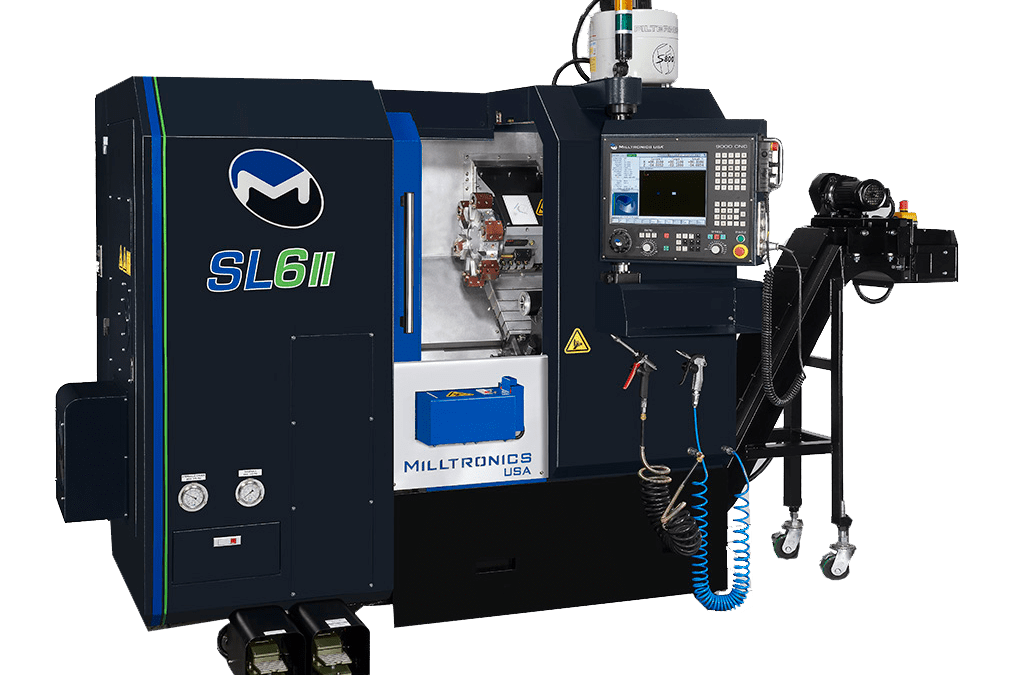

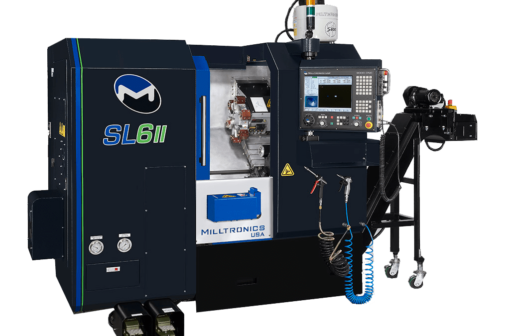

Milltronics Slant-Bed Turning Center SL6-II

The SL6-II has a 6″ 3-jaw chuck, a maximum turning diameter of 12″, maximum turning length of 13″. This model has a 17 HP spindle motor and a 6,000 RPM spindle. Standard with a 12-station auto turret.

Categorieën: ,
CAPACITY
X/Z Travels 7/14 in
Swing Over Bed 15.9 in
Swing Over Cross 9.45 in
Max. Turning Diameter 12.4 in
Max. Turning Length 13.4 in
SPINDLE
Spindle Nose A2-5
Draw Tube Diameter 1.77 in
Spindle Range 0-6000 RPM
AC Spindle Motor 17/10 HP
Spindle Torque 83 ft-lbs
Tailstock Quill Travel 3.46 in
Tailstock Quill Diameter 2.28 in
Tailstock Quill Taper MT4
AUTOMATIC TURRET
Tool Capacity 12
Tooling Size .75 in
Boring Bar Capacity 1.25 in
Tool Selection Bi-Directional
MOTION
Rapid Traverse Rate 1181 IPM
Positioning Accuracy (+/- 0.0002 in)
Repeatability 0.0002 in
Axis Thrust Force 1851 lbs
GENERAL DETAILS
Machine Weight 7050 lbs
Machine Height 86.3 in
Footprint 126 x 82.2 in Nominal Operating (W x D)
Power Required 13 KVA / 32 Amps
Voltage Required 208-240 Volts / 3 Phase

  • Chip conveyor
  • 3-jaw hydraulic chuck with foot switch
  • Bi-directional turning cycle
  • Tail stock
  • 12 position auto turret with 1″ slots
  • True slant bed with one-piece base casting
  • Linear motion guideways with roller type bearings
  • Full enclosure with sliding door
  • Flood coolant
  • Auto lubrication
  • Part, wire frame & solid model graphics
  • Constant Surface Speed (CSS)
  • 120 GB solid-state hard drive
  • 15″ LCD color touch screen display
  • Spindle load meter
  • LCD hour meter
  • One-year warranty
  • Parts catcher
  • Mist collector
  • Bar feed interface
  • Automatic tool setter
  • Hydraulic tailstock
  • Additional spare “M” functions
  • Oil skimmer
  • Collet chucks
  • Digital Setup Assistant
  • Milltronics Shop View
