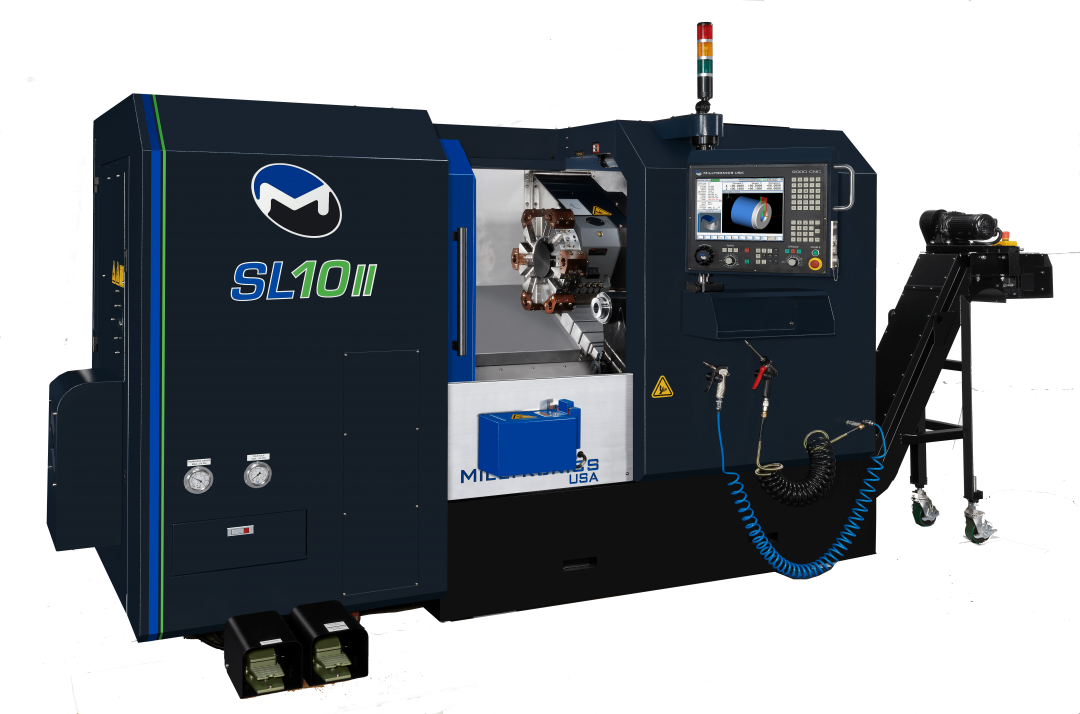

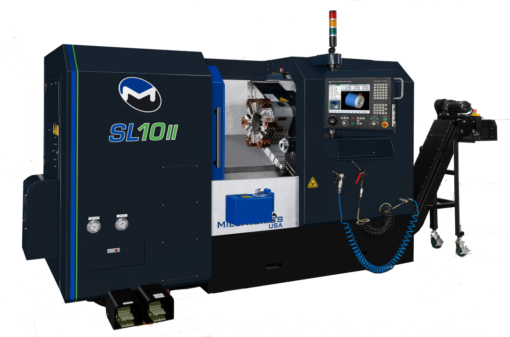

Milltronics Slant-Bed Turning Center SL10-II

Step up to the SL10-II, featuring a 10″ 3-jaw chuck, 3.74″ spindle bore and maximum turning length of 29.9″. This model has a 30 HP spindle motor and 12 tools in the turret. Options include: chip conveyor, tailstock, parts catcher, and tool presetter.

Categorieën: ,
CAPACITY
X/Z Travels 9.8/31.1 in
Swing Over Bed 22.9 in
Swing Over Cross 15.8 in
Max. Turning Diameter 17.7 in
Max. Turning Length 29.9 in
SPINDLE
Spindle Nose A2-8
Draw Tube Diameter 3.18 in
Spindle Range 0-3000 RPM
AC Spindle Motor 29.5/20 HP
Spindle Torque 260 ft-lbs
Tailstock Quill Travel 4.7 in
Tailstock Quill Diameter 3.54 in
Tailstock Quill Taper MT5
AUTOMATIC TURRET
Tool Capacity 12
Tooling Size 1 in
Boring Bar Capacity 1.5 in
Tool Selection Bi-Directional
MOTION
Rapid Traverse Rate 1183 IPM
Positioning Accuracy (+/- 0.0002 in)
Repeatability 0.0002 in
Axis Thrust Force 3125 lbs
GENERAL DETAILS
Machine Weight 10670 lbs
Machine Height 88.5 in
Footprint 166 x 94.8 in Nominal Operating (W x D)
Power Required 24 KVA / 59 Amps
Voltage Required 208-240 Volts / 3 Phase

  • 3-jaw hydraulic chuck with foot switch
  • 12 position auto turret with 1″ slots
  • True slant bed with one-piece base casting
  • Linear motion guideways with roller type bearings
  • Full enclosure with sliding door
  • Flood coolant
  • Auto lubrication
  • Part, wire frame & solid model graphics
  • Constant Surface Speed (CSS)
  • 120 GB solid-state hard drive
  • 15″ LCD color touch screen display
  • Spindle load meter
  • LCD hour meter
  • One-year warranty
  • Parts catcher
  • Mist collector
  • Bar feed interface
  • Bi-directional turning cycle
  • Automatic tool setter
  • Hydraulic tailstock
  • Additional spare “M” functions
  • Chip conveyor
  • Oil skimmer
  • Collet chucks
  • Digital Setup Assistant
  • Milltronics Shop View
