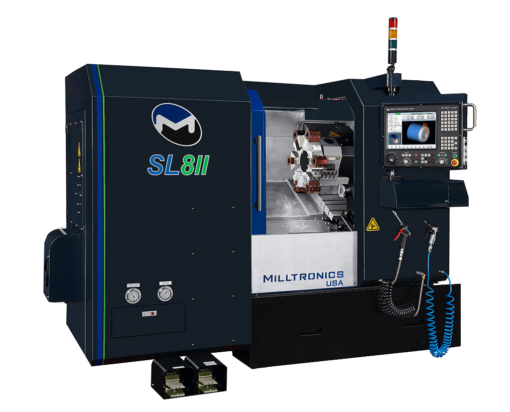

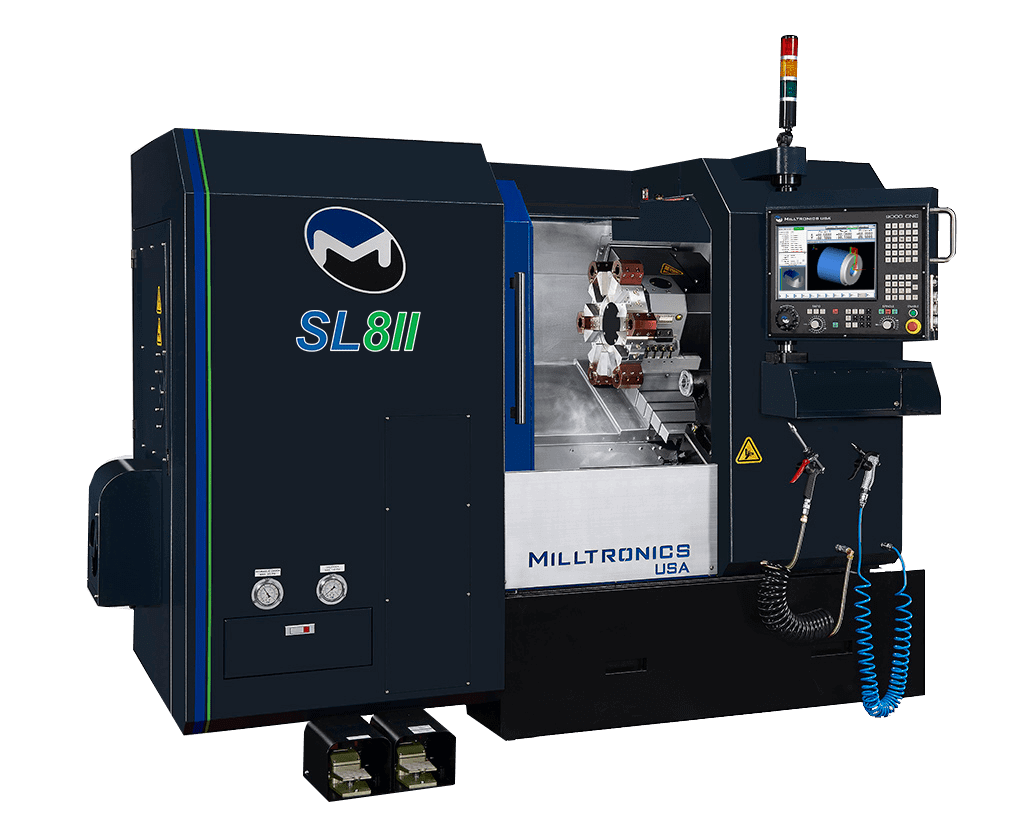

Milltronics Slant-Bed Turning Center SL8-II

The SL8-II has an 8″ 3-jaw chuck, a maximum turning diameter of 14″, maximum turning length of 20.7″ and a 3.2″ spindle bore. This popular size machine has a 22 HP spindle motor and a 4,000 RPM spindle. Standard with a 12-station auto turret. Options include chip conveyor, tailstock, and tool presetter.

Categorieën: ,
CAPACITY
X/Z Travels 8/21 in
Swing Over Bed 21.7 in
Swing Over Cross 11.8 in
Max. Turning Diameter 14 in
Max. Turning Length 21 in
SPINDLE
Spindle Nose A2-6
Draw Tube Diameter 2.54 in
Spindle Range 0-4000 RPM
AC Spindle Motor 30/20 HP
Spindle Torque 161 ft-lbs
Tailstock Quill Travel 3.46 in
Tailstock Quill Diameter 2.28 in
Tailstock Quill Taper MT4
AUTOMATIC TURRET
Tool Capacity 12
Tooling Size 1 in
Boring Bar Capacity 1.5 in
Tool Selection Bi-Directional
MOTION
Rapid Traverse Rate 1182 IPM
Positioning Accuracy (+/- 0.0002 in)
Repeatability 0.0002 in
Axis Thrust Force 1951 lbs
GENERAL DETAILS
Machine Weight 8885 lbs
Machine Height 83.7 in
Footprint 142.8 x 88.3 in Nominal Operating (W x D)
Power Required 18 KVA / 44 Amps
Voltage Required 208-240 Volts / 3 Phase

  • 3-jaw hydraulic chuck with foot switch
  • 12 position auto turret with 1″ slots
  • True slant bed with one-piece base casting
  • Linear motion guideways with roller type bearings
  • Full enclosure with sliding door
  • Flood coolant
  • Auto lubrication
  • Part, wire frame & solid model graphics
  • Constant Surface Speed (CSS)
  • 120 GB solid-state hard drive
  • 15″ LCD color touch screen display
  • Spindle load meter
  • LCD hour meter
  • One-year warranty
  • Parts catcher
  • Mist collector
  • Bar feed interface
  • Bi-directional turning cycle
  • Automatic tool setter
  • Hydraulic tailstock
  • Additional spare “M” functions
  • Chip conveyor
  • Oil skimmer
  • Collet chucks
  • Digital Setup Assistant
  • Milltronics Shop View
