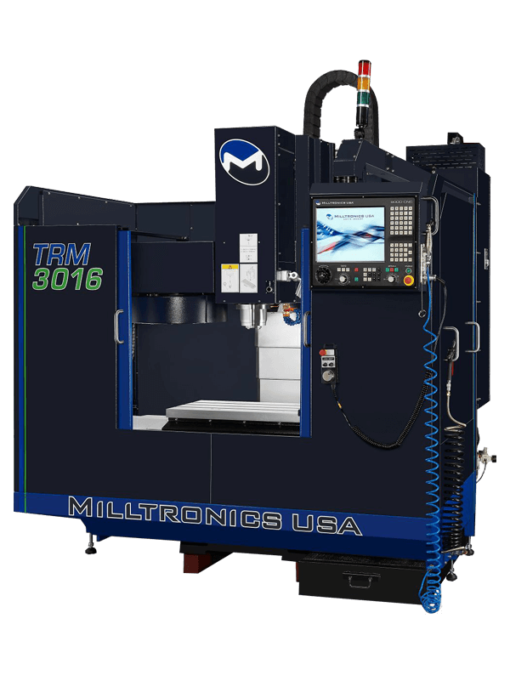

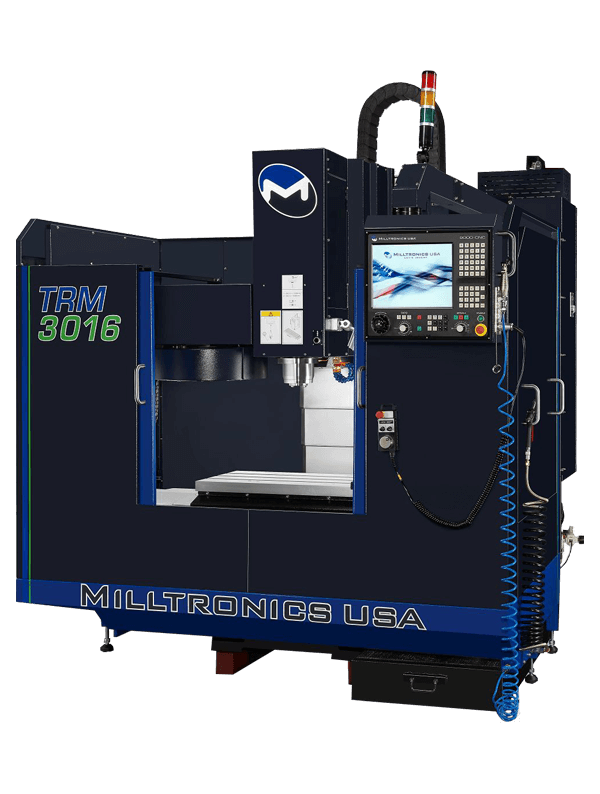

Milltronics Tool Room Mill TRM3016

The TRM3016 is a tool room mill that offers large travels, speed and power at a great price. A unique feature of the TRM Series is the “drop down” door openings that allow long part pass through to help accommodate oversize parts.

CAPACITY
Travels 30 x 16 x 20 in
Table Working Surface 35.4 x 16 in
Max. Weight on Table 992 lbs
Table T-Slots .71 in
SPINDLE
Spindle Taper BIG-PLUS® ISO No. 40
Spindle Speed (Max.) 8000 RPM
Spindle Power (Max.) 15/10 HP
Spindle Torque (Max.) 67 ft-lbs
Spindle to Nose 4-24 in
AUTOMATIC TOOL CHANGER
Tool Shank CT40
Retention Knob MAS 60
Tool Capacity / Type 16 / Carousel
Max. Tool Diameter 4 in
Max. Tool Length 11 in
Max. Tool Weight 10 lbs
MOTION
Rapid Traverse Rate 700 IPM
GENERAL DETAILS
Machine Weight 6835 lbs
Machine Height 111.3 in
Footprint 87.9 x 89.2 in Nominal Operating (W x D)
Power Requirement 18 KVA / 45 Amps
Voltage Requirement 208-240 Volts / 3 Phase

  • Milltronics 9000-DGI CNC
  • Solid box way construction (most models)
  • X/Y axis metal way cover construction (most models)
  • Auto lubrication
  • ISO No. 40
  • Spindle load meter
  • Spindle air purge (excluding VK / TRQ models)
  • Flood coolant
  • Rigid tapping (excluding VK / TRQ models)
  • LCD hour meter
  • One year warranty
  • Enclosure top cover
  • Chip auger
  • Remote handwheel
  • Milltronics rotary tables
  • Renishaw tool and part probes
  • Programmable spray mist or air blast
  • Auxiliary keyboard
  • Extended warranty
  • Factory start-up and on-site training
  • Training at Milltronics (Waconia, MN)
  • Printed manuals (PDF standard)
  • Milltronics logo floor mat
  • ChipBossTM Trochoidal Milling Software
  • Milltronics Shop View (MSV)
  • Offline DGI software
  • Quill scale
