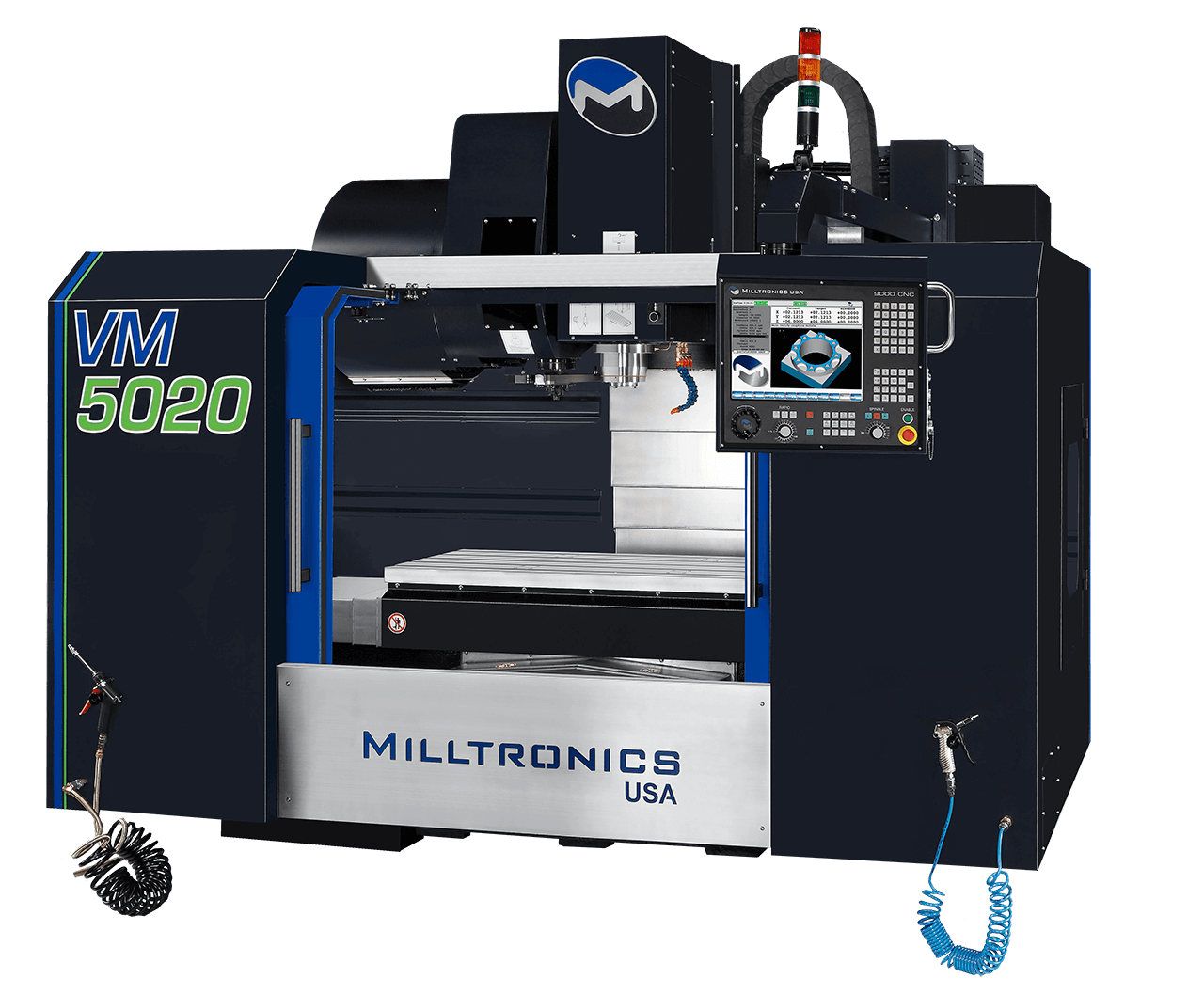

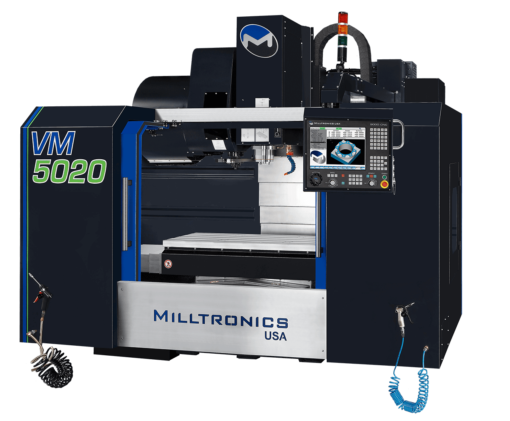

Milltronics 3-Axis Vertical Machining Center VM5020

For only a few dollars more than the VM4020, the VM5020 CNC mill adds 10″ more X-travel. With a 52″ x 20″ table and travels of 50″ x 20″ x 20″ this machine is a great value.

CAPACITY
Travels 50 x 20 x 20 in
Table Working Surface 52 x 20 in
Max. Weight on Table 3770 lbs
Table T-Slots .71 in
SPINDLE
Spindle Taper BIG-PLUS® ISO No. 40
Spindle Speed (Max.) 10000 RPM
Spindle Power (Max.) 20/15 HP
Spindle Torque (Max.) 75 ft-lbs
Spindle to Nose 4-24 in
AUTOMATIC TOOL CHANGER
Tool Shank CT40
Retention Knob MAS 60
Tool Capacity / Type 20 / Double Arm
Max. Tool Diameter 3.15 in
Max. Tool Length 9.45 in
Max. Tool Weight 15.4 lbs
MOTION
Rapid Traverse Rate 945 IPM
GENERAL DETAILS
Machine Weight 9400 lbs
Machine Height 101.5 in
Footprint 130 x 111.7 in Nominal Operating (W x D)
Power Requirement 22 KVA / 54 Amps
Voltage Requirement 208-240 Volts / 3 Phase

  • Milltronics 9000-DGI CNC
  • Heavily ribbed one piece fine grain cast iron casting
  • Fully enclosed machine guard with side doors
  • 30/35 mm linear way technology
  • Precision ground ballscrews supported at both ends
  • Precision ground table surface
  • Telescopic metal way covers
  • 20 pocket double arm ATC
  • CAT 40
  • Automatic positive displacement lubrication system
  • High torque AC digital servo drives
  • High torque closed loop vector spindle drive system
  • Work light (right side)
  • LCD hour meter
  • Spindle taper blow-out and tool release button
  • Spare “M” function with CNC “wait” channel
  • Programmable on/off flood coolant system
  • Rigid tap
  • Edit key lockout switch
  • Spindle load meter
  • Feedrate and spindle speed overrides
  • Spindle air purge
  • End of cycle light
  • One Year Warranty
  • Coolant through spindle system
  • Part and tool probes
  • 4th axis options
  • 5th axis options
  • Chip auger chip removal system
  • Lift up chip conveyor chip removal system
  • Remote handwheel
  • Auxiliary industrial grade keyboard
  • Electronic spindle chiller
  • Air gun
  • Coolant wash down gun
  • Additional work light (left side)
  • BT style tooling
  • ChipBoss™ Trochoidial Milling Software
  • Milltronics Shop View
  • Digital Setup Assistant
