| CAPACITY | |
|---|---|
| Travels | 25 x 15 x 20 in |
| Table Working Surface | 30 x 16 in |
| Max. Weight on Table | 3140 lbs |
| Table T-Slots | .71 in |
| SPINDLE | |
| Spindle Taper | BIG-PLUS® ISO. No. 40 |
| Spindle Speed (Max.) | 10000 RPM |
| Spindle Power (Max.) | 15/10 HP |
| Spindle Torque (Max.) | 54 ft-lbs |
| Spindle to Nose | 4-24 in |
| AUTOMATIC TOOL CHANGER | |
| Tool Shank | CT40 |
| Retention Knob | MAS 60 |
| Tool Capacity / Type | 20 / Double Arm |
| Max. Tool Diameter | 3.15 in |
| Max. Tool Length | 9.45 in |
| Max. Tool Weight | 15.4 lbs |
| MOTION | |
| Rapid Traverse Rate | 945 IPM |
| GENERAL DETAILS | |
| Machine Weight | 6200 lbs |
| Machine Height | 101.5 in |
| Footprint | 82.5 x 97.6 in Nominal Operating (W x D) |
| Power Requirement | 15 KVA / 38 Amps |
| Voltage Requirement | 208-240 Volts / 3 Phase |

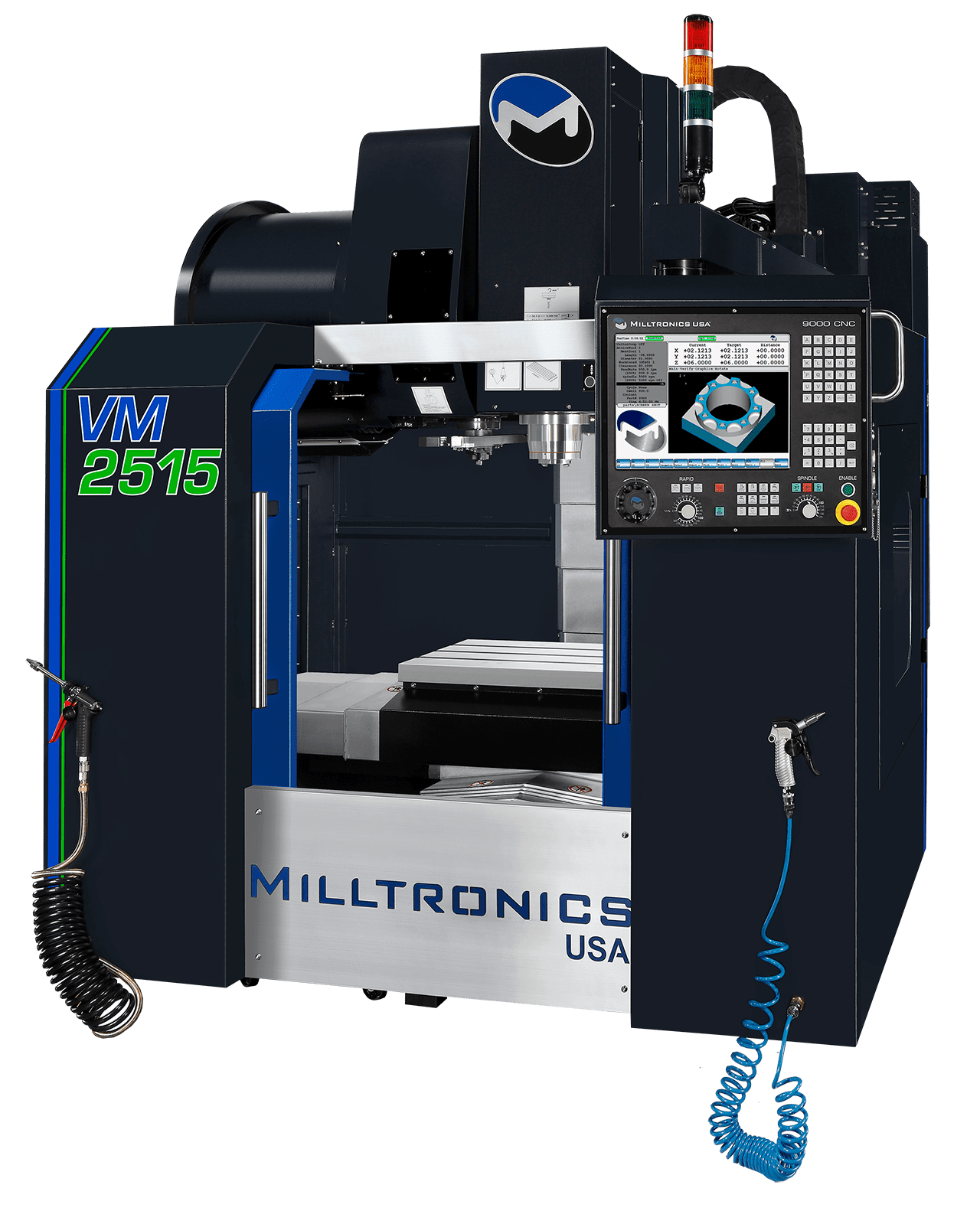

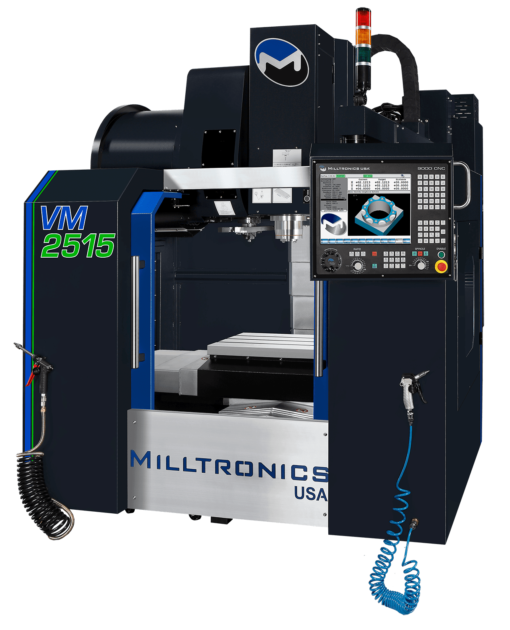

Milltronics 3-Axis Vertical Machining Center VM2515
The Milltronics VM2515 has 25″ x 15″ x 20″ travels and a 30″ x 16″ table that supports 3,140 lbs table weight at full speed. The VM2515 has a 15 HP 10,000 RPM BIG-PLUS® spindle.
- Heavily ribbed one piece fine grain cast iron casting
- Fully enclosed machine guard with side doors
- 30/35 mm linear way technology
- Precision ground ballscrews supported at both ends
- Precision ground table surface
- Telescopic metal way covers
- 20 pocket double arm ATC
- CAT 40
- Automatic positive displacement lubrication system
- High torque AC digital servo drives
- High torque closed loop vector spindle drive system
- Work light (right side)
- LCD hour meter
- Spindle taper blow-out and tool release button
- Spare “M” function with CNC “wait” channel
- Programmable on/off flood coolant system
- Rigid tap
- Edit key lockout switch
- Spindle load meter
- Feedrate and spindle speed overrides
- Spindle air purge
- End of cycle light
- One Year Warranty
