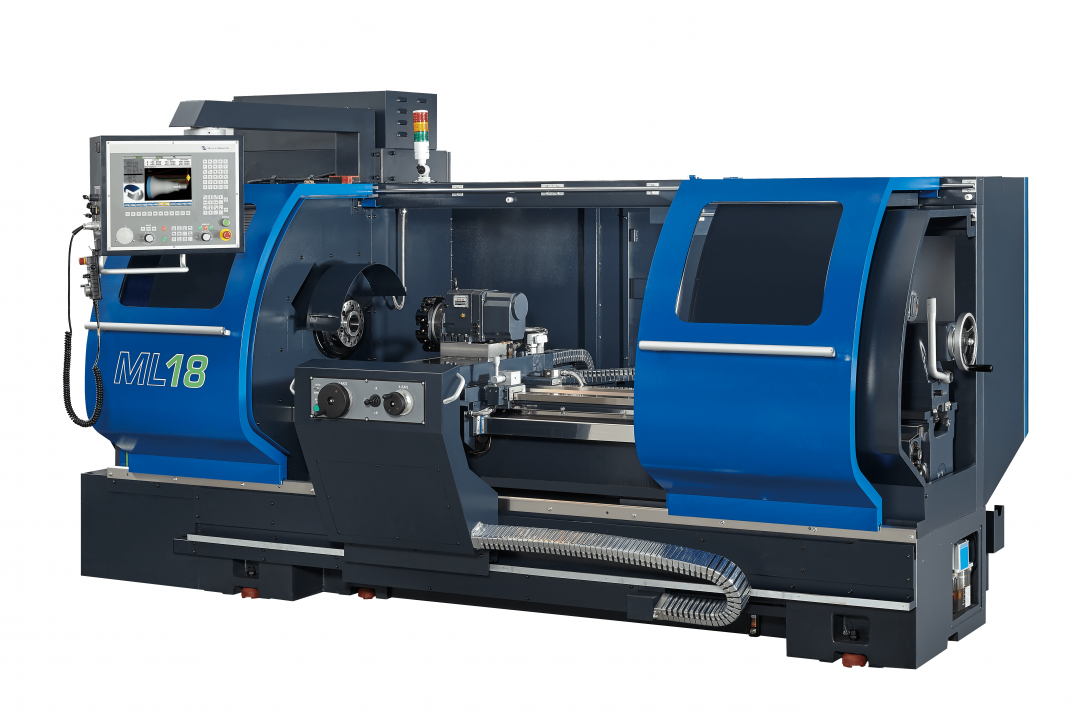

Milltronics Tool Room Lathe ML18/60

With a generous swing of 19,” length of 60″ and a 2.56″ spindle bore, the ML18/60 is our most popular tool room lathe. Featuring a 24 HP, 2,600 RPM spindle it produces 255 ft-lbs. of torque. Standard with an 8 station electro-mechanical turret. Options include chucks and chip conveyor.

CAPACITY
X/Z Travels 12/63.5 in
Swing Over Bed 19 in
Swing Over Gap 27.9 in
Gap Distance 12.75 in
Swing Over Cross 9.25 in
SPINDLE
Spindle Nose D1-6
Spindle Bore 2.56 in
Spindle Range 100-2600 RPM
AC Spindle Motor 24/15 HP
Spindle Torque 225 ft-lbs
Tailstock Quill Travel 8 in
Tailstock Quill Diameter 3.15 in
Tailstock Quill Taper MT5
AUTOMATIC TURRET
Tool Capacity 8
Tooling Size .75 in
Boring Bar Capacity 1.25 in
Tool Selection Bi-Directional
MOTION
Rapid Traverse Rate 500 IPM
Max. Cutting Feed Rate 100 IPM
Positioning Accuracy (+/- 0.00025 in)
Repeatability 0.0002 in
Axis Thrust Force 1500 lbs
GENERAL DETAILS
Machine Weight 8500 lbs
Machine Height 80 in
Footprint 145 x 84.4 in Nominal Operating (W x D)
Power Required 24 KVA / 60 Amps
Voltage Required 208-240 Volts / 3 Phase
  • 15-inch LCD color display
  • Solid model graphic display
  • 120 GB program storage memory
  • DXF file import
  • Networking
  • 35 mm linear way technology
  • Automatic lubrication
  • Spindle load meter
  • Flood coolant with enclosure
  • Thread chasing feature (most models)
  • 500 IPM rapid traverse rate
  • LCD hour meter
  • One year warranty
  • 10 or 14 in bore options for ML35 and ML40
  • Live tooling option for ML22 and larger lathes
  • Lift-up chip conveyor
  • Additional tool holders
  • Hydraulic quill for tailstock (most models)
  • Bi-directional turning cycle
  • Pneumatic 5C collet closer (ML16)
  • Additional spare “M” functions
  • Automatic tool turrets
  • Tool posts
  • Steady rest
  • Follow rest
  • Digital Setup Assistant
  • Milltronics Shop View
