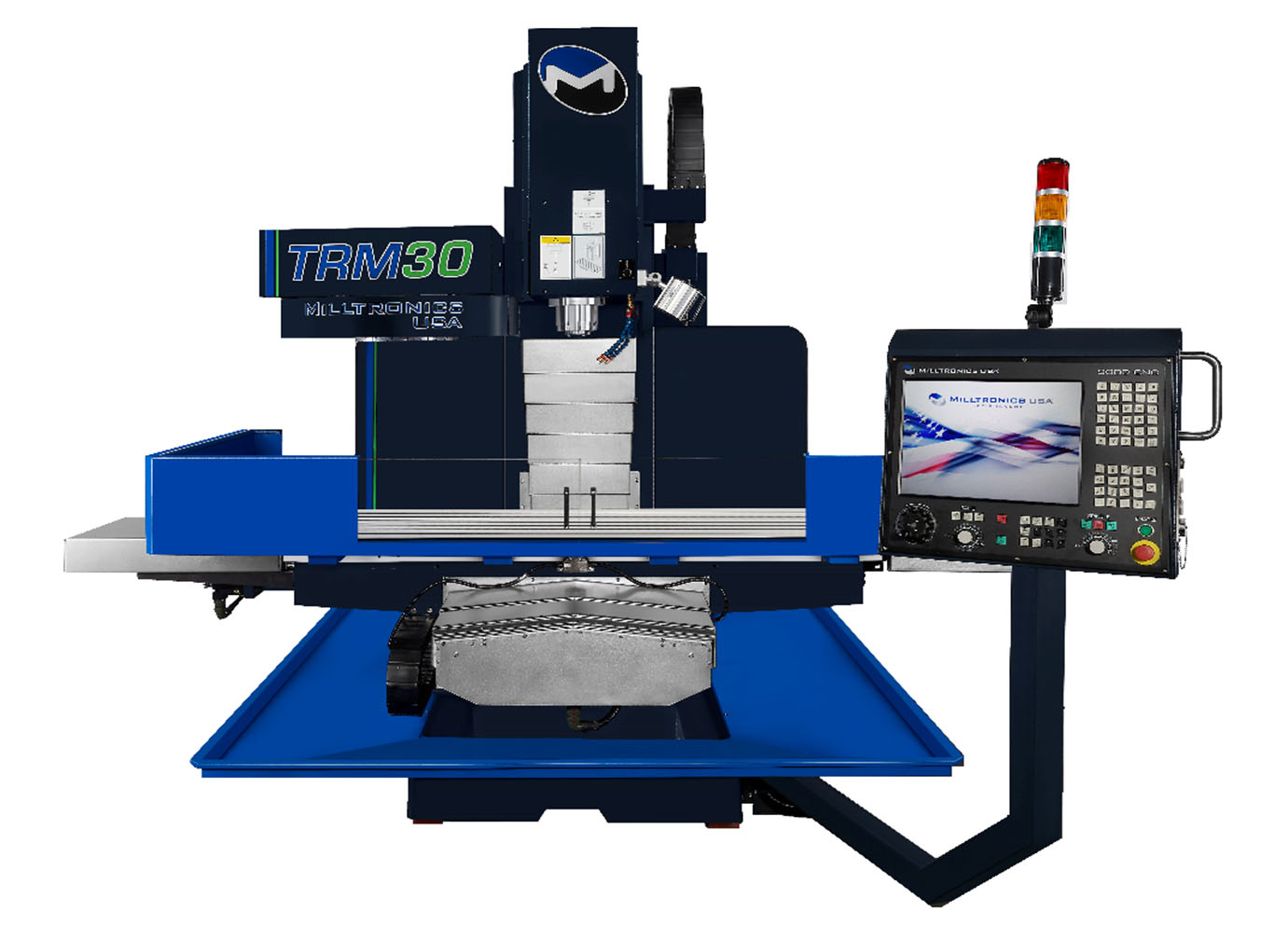

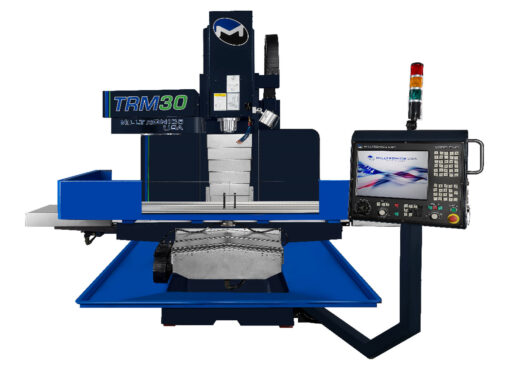

Milltronics Tool Room Mill TRM30

CAPACITY
Travels 59.84 x 29.13 x 28 in
Table Working Surface 73 x 24 in
Max. Weight on Table 2866 lbs
Table T-Slots .71 in
SPINDLE
Spindle Taper CT40
Spindle Speed (Max.) 8000 RPM
Spindle Power (Max.) 20/15 HP
Spindle Torque (Max.) 75 ft-lbs
Spindle to Nose 3.94-31.89 in
AUTOMATIC TOOL CHANGER
Tool Shank CT40
Retention Knob MAS 60
Tool Capacity / Type 24 / Carousel (Opt. Tool Changer)
Max. Tool Diameter 3.46 in
Max. Tool Length 11.8 in
Max. Tool Weight 15 lbs
MOTION
Rapid Traverse Rate 500 IPM
GENERAL DETAILS
Machine Weight 11023 lbs
Machine Height 108.9 in
Footprint 177.1 x 152.5 in Nominal Operating (W x D)
Power Requirement 27 KVA / 90 Amps
Voltage Requirement 200-240 VAC/60Hz

  • Solid box way construction (most models)
  • X/Y axis metal way cover construction (most models)
  • Auto lubrication
  • ISO No. 40
  • Spindle load meter
  • Spindle air purge (excluding VK / TRQ models)
  • Flood coolant
  • Rigid tapping (excluding VK / TRQ models)
  • LCD hour meter
  • One year warranty
  • Enclosure top cover
  • Chip auger
  • Remote handwheel
  • Milltronics rotary tables
  • Renishaw tool and part probes
  • Programmable spray mist or air blast
  • Auxiliary keyboard
  • Extended warranty
  • Factory start-up and on-site training
  • Training at Milltronics (Waconia, MN)
  • Printed manuals (PDF standard)
  • Milltronics logo floor mat
  • ChipBossTM Trochoidal Milling Software
  • Milltronics Shop View (MSV)
  • Offline DGI software
  • Quill scale
